Sewing on buttons with the Singer 401G

I had to do a little repair so I used the opportunity to get some photographs.
This procedure is so much fun and so quick it is over all too soon.  As usual preparation is key.  First fit an open, short-toed, button sewing foot to the presser bar.

Next raise the throat plate (which is, on the 401, the equivalent of dropping the feed dogs - trust Singer to be different!)

This is done by setting the throat plate positioning lever to the darn/embroider/button sewing symbol.

The stitch selector must be set at AL and the red lever at position 1.

With the work clamped down by the presser foot and the needle aligned with a hole on the left side of the button take one stitch (turning the balance wheel by hand) and stop with the needle just above the foot.

Then move the red lever to position 4 and take six zigzag stitches ending with the needle back on the left side.

Move the red lever back to position 1 and take three stitches to secure the button.  Remove the work from the machine and trim the loose threads.  It's that easy.  It takes seconds.  I kid you not!

Greist Buttonholer #1

This arrived last week.  It was just in time to make the buttonholes on the French back boxers.  I am rather taken with it for a number of reasons - the funky box is only one of them.

According to the back of the box Greist seem to have offered a bewildering range of buttonholers, no fewer than ten, to suit every conceivable sewing machine.  Make sure you get the right one.  For standard low shanks (like my Singers 15K, 28K, 99K and 201K) it's model #1.  If you're looking for a buttonholer to suit a Singer slant shank it's model #5.

Inside the box is the buttonholer itself;

cover plate and screw;

five button hole templates;

and (best of all in some respects) the instruction book.

The instructions are copyrighted 1966 so the buttonholer can't be any earlier than that although I am given to understand that Greist produced this design of buttonholer we'll into the 1980s.  I love the colour of the buttonholer and the instructions it looks very mid sixties to me.

The instructions are really well written and even offers tips on what size thread and needles to use.  I was interested and delighted to read the following Special Note which I have never seen in a Singer instruction booklet!

This buttonholer should come with five templates - 5/16", 5/8", 13/16", 1 1/16" (straight and keyhole).  Mine came with a rather odd, but useful, mix 5/16", 1/2", 5/8", 7/8" keyhole and eyelet.  The templates are plastic but as far as I can gather earlier versions used pot metal ones and they are interchangeable.  Even better than that, Greist made buttonholers for Singer and the templates from these are also interchangeable.

This buttonholer is smooth and surprisingly quite in use and makes great buttonholes.  I think this one is going to be getting a lot of use probably with the Singer 201K with dropped feed dogs.

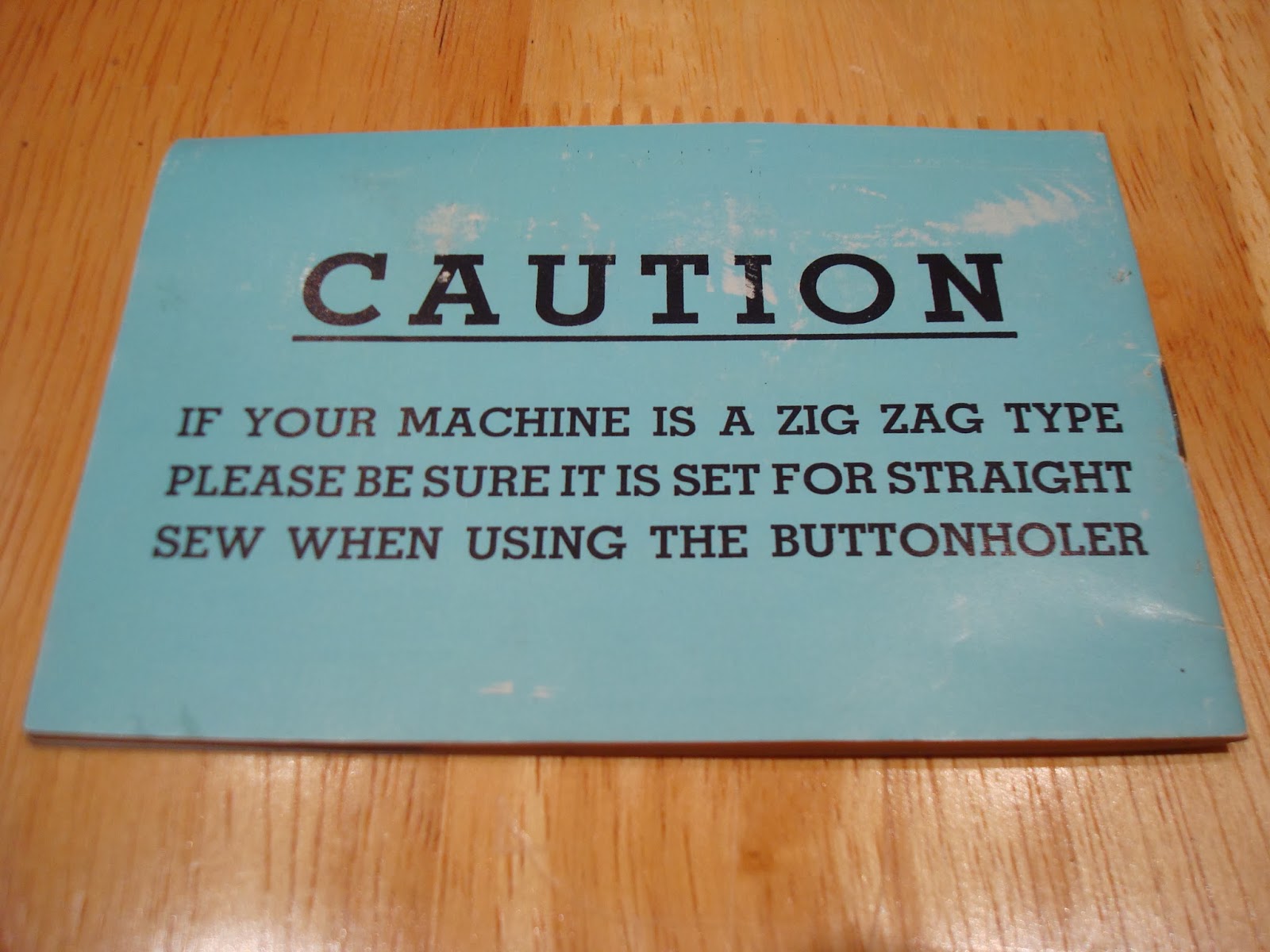

I love the back of the instruction manual as a parting shot!

Simplicity 1960: French Back Boxer Shorts - Pt II

Here are the finished boxers.  I added the buttonholes using my new toy a Griest #1 template buttonholer for low shank machines (this means YOU Mr Singer 201K).  I was very happy with the results.  I am planning a full photo-tour and review of the new (to me) buttonholer in a future post.

Front and back there are seven half-inch buttonholes and one additional thirteen-sixteenths vertical buttonhole which allows the waistbands to cross at the back.  It's a lot of work but we all get a buzz out of using an automatic buttonhole attachment right?

The position of the buttons at the back give a range of adjustment for expanding and contracting waists.  I think this design must have arisen from wartime and post war shortages of elastic.

The half inch (12mm) buttons I used were saved from shirts I cut up last year to turn into my first quilt.  There a total of nine so I think can be forgiven for sewing them on with the Singer 401G.  I used white thread to match the buttons rather than pink to match the shorts.  Sewing buttons on with a vintage Singer is probably worth a post all of its own sometime soon.

I am happy with the way these turned out but.  I will need to forget how much work they are before I am tempted to make them again.

Simplicity 1960: French Back Boxer Shorts - Pt I

I have had this pink and blue striped cotton shirting for months.  I picked it up cheaply on eBay.  I washed it to preshrink it ages ago and then it took me ever so long to remember to take it with me to the shops so that I could buy matching thread.  I no longer trust my memory of colour to buy thread.  Unless it's black or white.  After the fabric was preshrunk I was left with just under two yards.

That's a slightly awkward yardage - not really enough for a shirt.  I decided that the only option would have to be boxers.  I had a bit of spare time on my hands so I elected to make one of the most complicated patterns for boxer shorts in the world: Simplicity 1960 ©1945.

I have made boxers from this pattern once or twice before, retracing and redrafting the pattern to allow for my ample girth ©2013.  I pressed the pattern pieces and fabric in the usual way prior to cutting out.  I cut out using the rotary cutter with the help of Ramses II and Venus who always like to get in on the act at this stage.

The first step is to make two pleats in the fronts of the boxers.  These are clearly marked on the pattern pieces and the stripes on the fabric certainly help.

I secured the pleats with pins.

Last Sunday we did some organising in the sewing room so now I can used the Singer 201K in it's No.41 cabinet.  It's the first time it has seen any treadle action since the arsenic green Negroni shirt back in June!  I've rather missed it.  It's now positioned to the right of a window so the light, by day, is good.  I set the stitch length to the longest tacking/basting stitch 6spi.

And sewed about ¼ inch from the top of the boxers to secure the pleats.

The next step is to secure the two fronts together at the crotch seam using a flat felled seam.  This is a little tricky as the seam allowance has a curved taper from ⅝ inch down to nothing.  Careful pressing and folding and a slow but steady foot on the treadle are a must.  Lightly marking the sewing line with a pencil doesn't hurt either.

Here both fronts have been pleated and joined at the crotch.

I then turned my attention to the seat panel and the questionable pleasure of creating a continuous lap.  The first time I made this pattern I actually had to look up what it was.  Thank goodness for the Internet-o-graph!

The first step is to stay stitch a V either side of the centre back.  The pattern has this V marked on it.  I marked it lightly on the fabric with a sharp pencil.

I then carefully slashed between the two lines of stay stitching - making sure not cut through the line of stitches.

And then (and this is the really silly bit) you have to open the V up until it as near a straight line as possible and pin a strip of fabric along the raw edge.

And then (the silly and HARD bit) stitch it - oh so carefully! - in place in such a way that the line of stay stitching will be enclosed.

Finally the raw edge of the strip is turned under and the fold top stitched to the right side of the seat panel.  This forms a sort of gusset.  I didn't find it easy.  It's well worth practising with scraps.  The pattern instructions call for a one inch strip for the binding.  Make it a generous inch.  I made mine nearer 1⅛ inch and was satisfied with the result.

After all that fuss sewing the seat panel to the fronts and joining the legs (all with flat felled seams) seams like child's play.

Here is where I ran out of steam.  The basic construction is complete with the two part yoke sewn to the wrong side of the shorts, folded over and then edge stitched to the right side.

The boxers still lack a hem, button holes, and buttons but they will have to wait for another day.  At the back the two piece yoke  combines with the continuous lap to form an adjustable waistband which negates the need for elastic.  How's that for austerity spec?!

Wrap Around Pinny Finished

This is one of those sewing projects that stalled and would not restart for some time.  It was nearly finished for ages but now it is really finished.

If I had a dress form I could have shown this off a little better but the coat hanger give some idea.  The pinny crosses over at the front and ties with a slim bow at the back.

The two ties are secured at the waist with a rectangle of topstitching on the inside of the pinny.

The tie on the left front passes through a small gap in the side seam under the armhole on the righthand side of the pinny.  I reinforced this with some back and forward stitches rather than a worked buttonhole.  This is a utility garment after all.

The stalling point for me was the bias binding.  There must be about five yard of the stuff on this garment.  I made my own and first tried to attach it with the vintage binding foot on the Singer 99K.  The straights went well but it struggles with sharper curves and crossing seams.  I had to unpick the dodgy bits and go back over them with the regulars straight stitch foot.

I didn't even attempt it on the armholes.  I went out and bought a bias binder maker which is loads of fun to use and attached the binding by pinning and sewing once through all five layers.  Not the finest of finishes but fine for doing the dishes in.

Not that I will be wearing it for washing the dishes or scrubbing the front step.  It's far too small.  It has however provided me with practice using bias binding and probably the confidence to have a go at making a dressing gown sometime soon.
